Piezo Buzzer with Plate Whoop sound

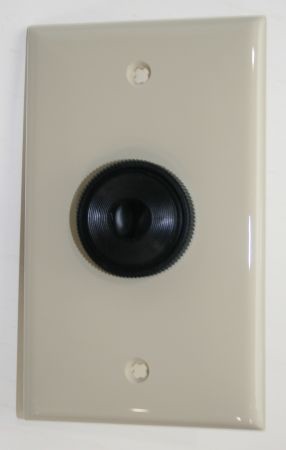

Piezo Buzzer 6-28 Vdc Whoop Sound with Plate UO-09-628-S

Part Number: UO-09-628-S

Your Price: $18.95

Piezo electric audible buzzer that produces a WHOOP sound when energized. This model UO-09-628-S is provided with a single gang Ivory colored Vinyl wall plate. Easily install this device on a customer provided single gang electrical junction box. Operates on 6 to 28 Volts DC and has an ultra loud output, the whoop tone has a typical sound pressure level of 109 dBA(measured at 2 feet) at 28Vdc and slightly lower dB at the lower voltage input range. The terminals are standard 0.25" quick connect blades with screws added for connection to wires with lugs. Intended for indoor use.

Operating Frequency: 2100±250 Hz. Center 2±25% Cycles per second

Typical Operating Current: 20 mA at 6 Vdc, 50 mA at 28 Vdc
